Product Info

Product Info

Features & Benefits

• Large washing basket means cleaner materials left on site
• Easy to use, driver approved
• Environmental Compliance: eliminate litigation and claims
  - ask us how!
• Customer appreciation and satisfaction
• Light weight aluminum construction
• No pumps / Low Maintenance
• Can be used to discharge admixtures at job sites
• Large washing basket/screen for coarse aggregate
• Competitively priced

Other Videos

Installation How Long Does it Take Driver Training video

Installation How Long Does it Take Driver Training video

Opreating Procedures

Operating Procedures

×

• Remove as much concrete as possible from the chute prior to pulling away from discharge point.

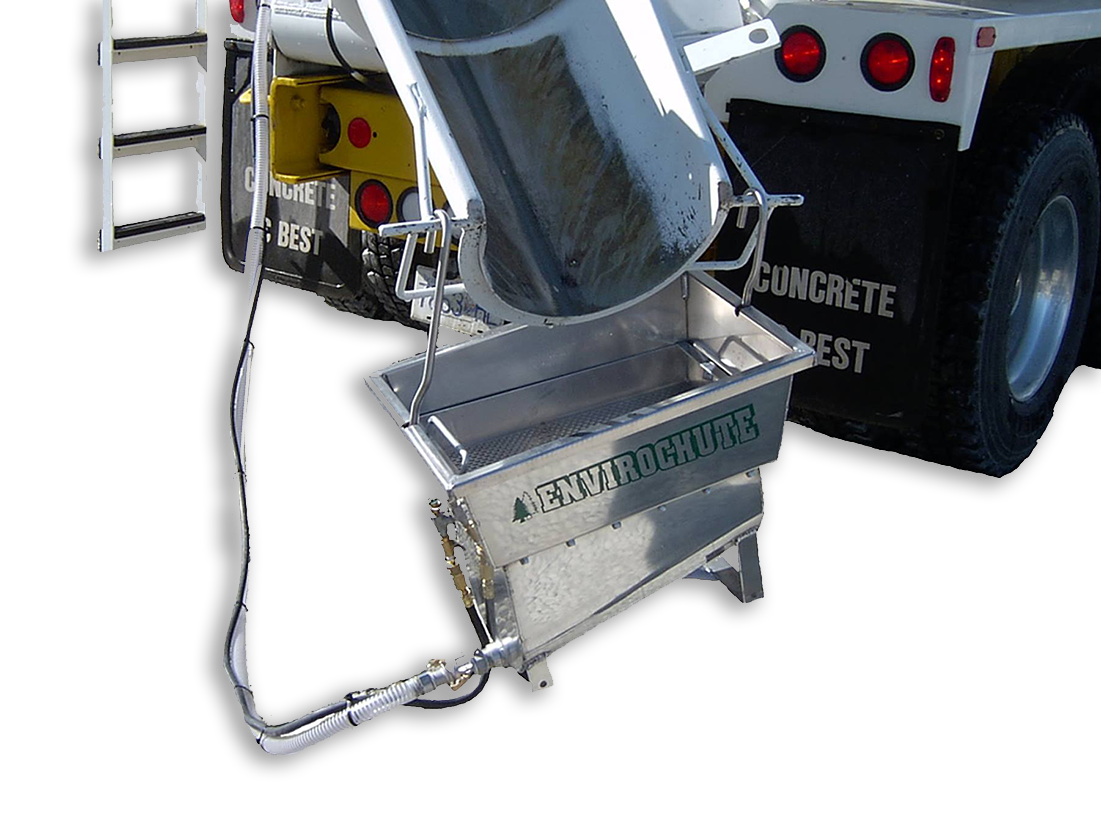

• Position the Envirochute at the end of the chute and attach the 1'' discharge hose and the 3/8'' air line to the unit. Ensure the aggregate basket is in place.
• Wash the hopper and chutes into the containment unit.
• Wash the coarse fraction retained, remove basket and discard aggregate.
• Rinse residual fines into lower half of the unit.
• Lift ball and open the air valve to discharge slurry into the truck.
• Close the air valve and rinse system with clean water. Repeat discharge procedure.
• Return and secure Envirochute and hoses to truck for travel mode.

Technical Specifications

Technical Specifications

×

• The Envirochute incorporates light weight aluminum construction.
• Stainless steel pivoting hanger hooks fold inward to minimize travel height. Available to fit all common chutes.
• The Envirochute has no pumps and is low maintenance, uses regulated low pressure truck air to discharge slurry water and sand back to the drum.
• The large basket/screen surface area allows for better washing of coarse aggregate for job site disposal.
• Unit drains clean and empty, thus no problems in freezing conditions.
• Discharge can be accomplished at any time by lifting the ball valve. This corresponds to less water used and a shorter time required.
• Unit can facilitate dispensing of admixtures at job sites.
• Unit weight (empty, less hoses) approximately 11.4 kg (25 lbs)
• Unit size: 23''W x 16''D x 19''H.
• Aluminum dust covers are now available.

Return on Investment

Return On Investment

×

You can look at purchasing an Envirochute two ways, you can either purchase a unit when regulations require. Or you can get ahead of the game and look at the Envirochute not only as a tool but a source of revenue!

Consider many producers are supplying washout bags to customers for $30 - $50.00 each, which leavesthe customer responsible for disposal. If you are seeing some acceptaince of this practive at this price point, consider this!< If you could negotiate a wash out fee of just 1/3 of that which is $10 per load. If that truck carries an average of 5 loads a day for 26 working days it will generate $1300.00 in revenue collected from wash out fees in one month. Another way to look at it would be to charge $1-2 washout fee per meter.

Once the unit is paid off, there is only profit to be realized. If this interests you, we would be happy to talk with you further and discuss what the Envirochute System can do for you and your fleet.
